| MOQ: | 200m |
| 価格: | USD0.03-50 |
| 標準パッケージ: | 100m/roll またはカスタマイズされる |
| 配達期間: | 条件によって |
| 供給能力: | 1 週あたりの 10km |

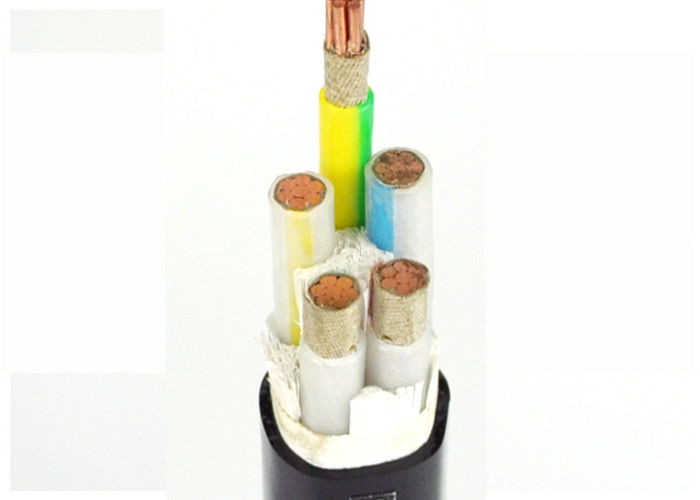

PVC / XLPE Insulation Fire Resistant Power Cable 1.5 mm2 - 600 mm2 Eco Friendly
CU/Mica/XLPE/LSOH, IEC 60331
IEC 60502,60331 IEC 60227, IEC 60331, IEC 601034, IEC60754 GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
CE, CCC, KEMA
Constructions
Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation: XLPE/A
Inner Covering: LSOH
Sheath: LSOH , black
Note: Insulation color as per standards or customer requirement
Applications
Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.
Standards
International: IEC 60502, IEC 60227 IEC 60331, IEC 601034
China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 0.6-KV
Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
Certificates
CE, RoHS, CCC, KEMA and more others at request
Product Description:
- XLPE insulated PVC sheathed power cable (XLPE/PVC Cable)
- XLPE insulated steel tape armored PVC sheathed power cable (XLPE/STA/PVC Cable)
- XLPE insulated steel wire armored PVC sheathed power cable (XLPE/SWA/PVC Cable)
- Flame retardant XLPE insulated PVC sheathed power cable (FR/XLPE/PVC Cable)
- Flame retardant XLPE insulated steel tape armored PVC sheathed power cable (FR/XLPE/STA/PVC Cable)
- Flame retardant XLPE insulated steel wire armored PVC sheathed power cable (FR/XLPE/SWA/PVC Cable)
FR – Flame Retardant
|
|
