| MOQ: | 200m |
| 価格: | USD0.03-5.0 |
| 標準パッケージ: | 100m/roll またはカスタマイズされる |
| 配達期間: | スケジュールによって |
| 供給能力: | 1 週あたりの 10km |
Muticore Control Fire Resistant Cable 450V 750V Customized IEC ISO Standard
Applications
Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

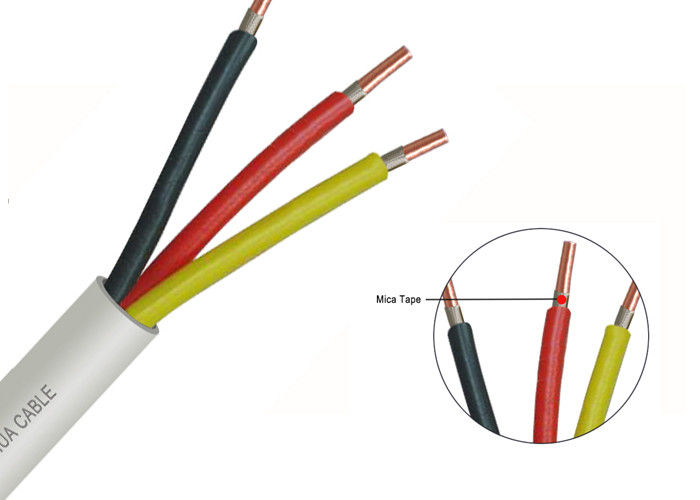

Cable Structure
Conductor : Class 1,2,5 Flexible Copper Conductor
Screen: Mica tape
Insulation: PVC or LSZH PO
Sheath: PVC: (Optional)
Rated Voltage :450/750V
Standards
International: IEC 60227,IEC60331
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical Data
Rated voltage: 300/500 V
Max. Conductor Temp. in normal use: 90℃
Min. Bending Radius: 6 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Operating characteristics
1 ,Long-term allowable operating temperature of cable conductor ≤70°C
2, Highest working temperature of cable in case of short circuit (the longest lasting time is not over 5s):≤300mm2 cable conductor ≤160°C, ≥300 mm2 cable conductor≤ 140°C.
3, The laying temperature should over 0℃,Permissible bending radius of cable:for single core unarmored cable, should be no less than 20 times of it’s outer diameter ; for multi-core unarmored cable, should be no less than 15 times of it’s outer diameter
4, With flame-retardant property,ZA,ZB,ZC,ZD are 4 types
5, The product is applicable for AC 50 Hz transmission and distribution lines with rated voltage of 0.6/1KV
FAQ
Q1: Are you a trading company or manufacture?
A2: SHAN cable is a professional manufacture,not a trading company,Thus,we can control your order from the first beginning to the end.
Q2: How is your quality control?
A3: That really depends,but i can make an example to explain how we deal with a high-quality requested client. There was one client,who is dealing with national CCTV network: first,we will make a sample according to client’s request,which is not only reflected on material choice,but also the data sheet--it must reach the standard the national CCTV offered. If,and only if the sample get passed,we will begin to put on producing. During the production,we will test every roll (not selective test),pick out the rolls with flaw,ensure the cable clients get will be 100% OK.
Q3: Which certificates you have?
A4: We have CCC, CE,ROHS, and we got one of the most strict certificates--UL,which indicates we can offer you the top quality cables.
Q4: What is the MOQ?
A5: Usually,the MOQ of our general coaxial cable product is300M,but every inquiry will be considered individually.
Q5: Can you offer me a free sample?
A6: Yes,we do,that is a start of business-i think. And you will only pay the cost of delivery,which we will return it to you when you put the order.
Q6: How is your package?
A7: wooden tray for exported
Q7: How is the payment?
A8: Usually we accept 30%T/T as advanced deposit,70% T/T will be against the sight of B/L. And L/C is accepted,short time term L/C we prefer,and long time term is negotiable when our business-relationship is built.
Q8: Where is your closed port in China?
A9: Shanghai has the almost equal distance from our factory to get there.
Q9: Can you produce the specification cable strictly according to clients' requirement?
A10: Yes,we can.We have experienced technical team and production team.
|
|
