| MOQ: | 200 |
| 価格: | 1~50USD/Metrer |
| 標準パッケージ: | ロールごとの 100meter |
| 配達期間: | 10 |
| 供給能力: | 20KM/Month |

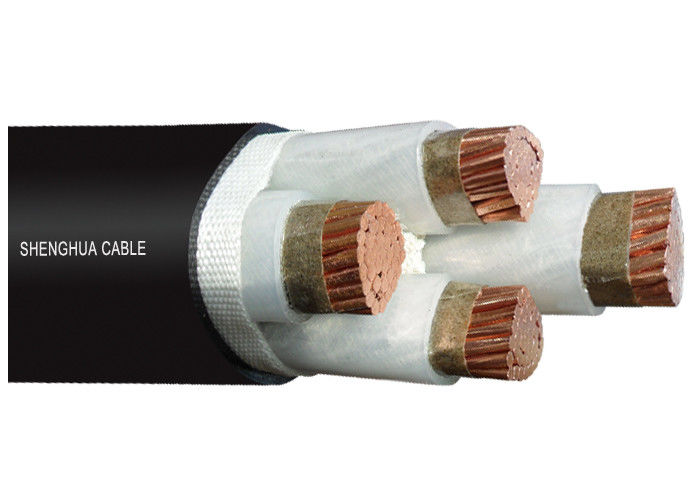

XLPE Insulation Fire Resistant Cable with Mica-tape , fire retardant cable
Application:
0.6/1kV XLPE Cable is used indoor or outdoor, in tunnel, cable furrow or pipe. It able to bear external mechanical forces, but the tractive force during laying
Standards: IEC60502-1, BS7870-3
Conductor: Cu or Aluminum
Insulation: XLPE (Cross-Linked Polyethylene)
Armor: non-armor, steel tape armored, steel wire armored
Sheath: PVC, Sheath Color: Black or Colors
Product Description:
- XLPE insulated PVC sheathed power cable (XLPE/PVC Cable)
- XLPE insulated steel tape armored PVC sheathed power cable (XLPE/STA/PVC Cable)
- XLPE insulated steel wire armored PVC sheathed power cable (XLPE/SWA/PVC Cable)
- Flame retardant XLPE insulated PVC sheathed power cable (FR/XLPE/PVC Cable)
- Flame retardant XLPE insulated steel tape armored PVC sheathed power cable (FR/XLPE/STA/PVC Cable)
- Flame retardant XLPE insulated steel wire armored PVC sheathed power cable (FR/XLPE/SWA/PVC Cable)
Service Conditions And Parameters Of Cable:
The maximum conductor operating temperature: 90℃;
Short Circuit Temperature 250℃Not more than 5 secretary
Environmental Temperature of operating
In air: 40℃, Underground: 25℃
Depth of laying in direct: 80cm
Thermal Resistance of soil: 1.2℃.cm/W
Environment temperature should be no lower than 0℃ for laying the cable.
|
|
