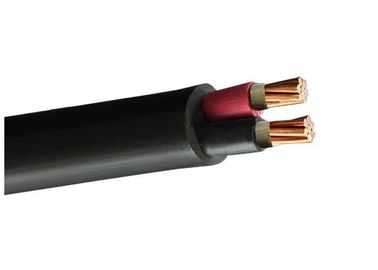

0.6 / 1kV Fire Resistant Cable Low Smoke Zero Halogen Electrical Cable

0.6 / 1kV Fire Resistant Cable Low Smoke Zero Halogen Electrical Cable

MOQ: 500メートル
価格: 0.58-25.7USD/M
標準パッケージ: 木のドラム
配達期間: スケジュールによって
決済方法: L / C、T / T
供給能力: 200KM/MONTH
詳細情報
起源の場所
中国
ブランド名
QINGDAO YICABLE CABLE
証明
ROHS CE KEMA
動作温度:
90 ℃
タイプ:
FRC
絶縁材色:
オレンジか黒
サンプル:
無料
応用分野:
屋内で、トンネルで、ケーブルの堀、
AC 評価される電圧:
600/1000V
ハイライト:

fire rated cable

,

fire resistant wire

製品説明

0.6 / 1kVFire Resistant Cable Low Smoke Zero Halogen Electrical Cable





Fire resistant cable is one kind of cable that can keep certain safe running time in the case of flame combustion. Fire resistant cable is widely used in high-rise buildings, underground railway, underground street, large power station and important industrial and mining enterprises and other places related to fire safety and fire rescue.

-> Using condition:
1. AC rated voltage: U0 /U (V series: 600/1000V, K series: 450/750V, B series: 450/750V).

2. long working temperature of cable:
(1) the insulation and sheath of vinyl fluoride: 70℃ and 105℃;
cross linked polyethylene(XLPE) insulation: 90℃;
(2) fluoroplastic insulated and sheathed: 220℃ and 260℃;
fluorine plastic insulation and 105℃ flame retardant poly vinyl fluoride sheath: 90℃ and 125℃.
(3) low halogen low smoke flame retardant PVC insulated and sheathed: 70 ℃;
non halogen low smoke flame retardant polyolefin insulation and sheath: 90℃ and 125℃.

3. minimum ambient temperature:
(1) flame retardant PVC insulation and sheath: fixed laying: -40℃; non-fixed laying: -15℃;
(2) fluorine plastic insulation and sheath: fixed laying: -60℃;
non-fixed laying: -20℃;
4. the temperature of cable laying should not be less than 0℃.

Common Model:
Model Name Application
NA-YJV/NB-YJV Cross-linked polyethylene insulated PVC sheathed A(B) Class fire-resistant power cable

Laying in indoors, tunnel and pipeline with refractory requirement.



NA-YJV22/NB-YJV22 XLPE insulation steel tape armored PVC sheathed A(B) Class fire-resistant power cable Suitable for buried laying with refractory requirement, not suitable for laying i n pipeline.
WDNA-YJY/WDNB-YJY XLPE insulation polyolefin sheath A(B) Class low-smoke zero halogen fire-resistant power cable Laying in indoors, tunnel and pipeline with low smoke and refractory requirement
WDNA-YJY23/WDNB-YJY23 XLPE insulating steel tape armoured polyolefin sheath A(B) class low smoke zero halogen fire-resistant power cable Suitable for buried laying with low smoke zero halogen and refractory requirement, not suitable for laying in pipeline.



0.6 / 1kV Fire Resistant Cable Low Smoke Zero Halogen Electrical Cable 0

製品
商品の詳細
0.6 / 1kV Fire Resistant Cable Low Smoke Zero Halogen Electrical Cable
MOQ: 500メートル
価格: 0.58-25.7USD/M
標準パッケージ: 木のドラム
配達期間: スケジュールによって
決済方法: L / C、T / T
供給能力: 200KM/MONTH
詳細情報
起源の場所
中国
ブランド名
QINGDAO YICABLE CABLE
証明
ROHS CE KEMA
動作温度:
90 ℃
タイプ:
FRC
絶縁材色:
オレンジか黒
サンプル:
無料
応用分野:
屋内で、トンネルで、ケーブルの堀、
AC 評価される電圧:
600/1000V
最小注文数量:
500メートル
価格:
0.58-25.7USD/M
パッケージの詳細:
木のドラム
受渡し時間:
スケジュールによって
支払条件:
L / C、T / T
供給の能力:
200KM/MONTH
ハイライト

fire rated cable

,

fire resistant wire

製品説明

0.6 / 1kVFire Resistant Cable Low Smoke Zero Halogen Electrical Cable





Fire resistant cable is one kind of cable that can keep certain safe running time in the case of flame combustion. Fire resistant cable is widely used in high-rise buildings, underground railway, underground street, large power station and important industrial and mining enterprises and other places related to fire safety and fire rescue.

-> Using condition:
1. AC rated voltage: U0 /U (V series: 600/1000V, K series: 450/750V, B series: 450/750V).

2. long working temperature of cable:
(1) the insulation and sheath of vinyl fluoride: 70℃ and 105℃;
cross linked polyethylene(XLPE) insulation: 90℃;
(2) fluoroplastic insulated and sheathed: 220℃ and 260℃;
fluorine plastic insulation and 105℃ flame retardant poly vinyl fluoride sheath: 90℃ and 125℃.
(3) low halogen low smoke flame retardant PVC insulated and sheathed: 70 ℃;
non halogen low smoke flame retardant polyolefin insulation and sheath: 90℃ and 125℃.

3. minimum ambient temperature:
(1) flame retardant PVC insulation and sheath: fixed laying: -40℃; non-fixed laying: -15℃;
(2) fluorine plastic insulation and sheath: fixed laying: -60℃;
non-fixed laying: -20℃;
4. the temperature of cable laying should not be less than 0℃.

Common Model:
Model Name Application
NA-YJV/NB-YJV Cross-linked polyethylene insulated PVC sheathed A(B) Class fire-resistant power cable

Laying in indoors, tunnel and pipeline with refractory requirement.



NA-YJV22/NB-YJV22 XLPE insulation steel tape armored PVC sheathed A(B) Class fire-resistant power cable Suitable for buried laying with refractory requirement, not suitable for laying i n pipeline.
WDNA-YJY/WDNB-YJY XLPE insulation polyolefin sheath A(B) Class low-smoke zero halogen fire-resistant power cable Laying in indoors, tunnel and pipeline with low smoke and refractory requirement
WDNA-YJY23/WDNB-YJY23 XLPE insulating steel tape armoured polyolefin sheath A(B) class low smoke zero halogen fire-resistant power cable Suitable for buried laying with low smoke zero halogen and refractory requirement, not suitable for laying in pipeline.



0.6 / 1kV Fire Resistant Cable Low Smoke Zero Halogen Electrical Cable 0
