| 起源の場所 | 中国 |
| ブランド名 | QINGDAO YICABLE CABLE |
| 証明 | CE/KEMA/CCC/TUV |

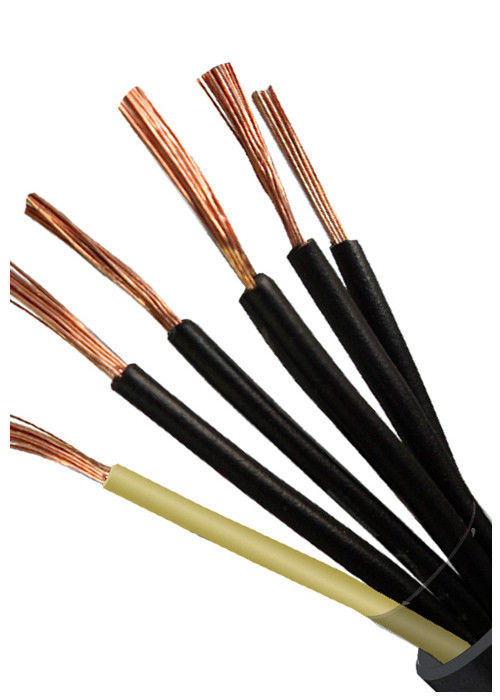

Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2
Construction:
Conductor: Class 5 Copper Conductor
Insualtion: PVC
Sheath: PVC
Standard:
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 450/750V
Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.
Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 6 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Application:
Suitable for being laid indoors, in cable trench, pipelines or other specific occasions and High performance soft place
Specifications:
| Cross-Sectional Area mm2 |
Thickness of Insulation |
Thickness of Sheath |
Overall Diameter | Min resistance of insulation at 70℃ MΩ/km |
Max.D.C resistance of at 20℃ MΩ/km |
|
| min | max | |||||
| 4x0.5 | 0.6 | 1.2 | 7.3 | 9.2 | 0.013 | 39 |
| 4x0.75 | 0.6 | 1.2 | 7.6 | 9.6 | 0.011 | 26 |
| 4x1.0 | 0.6 | 1.2 | 8 | 10 | 0.01 | 19.5 |
| 4x1.5 | 0.7 | 1.2 | 9 | 11.3 | 0.01 | 13.3 |
| 4x2.5 | 0.8 | 1.2 | 10.5 | 13.1 | 0.009 | 7.98 |
| 5x0.75 | 0.6 | 1.2 | 7.9 | 9.9 | 0.013 | 26 |
| 5x1.0 | 0.6 | 1.2 | 8.3 | 10.3 | 0.011 | 19.5 |
| 5x1.5 | 0.7 | 1.2 | 9.8 | 12.2 | 0.01 | 13.3 |
| 5x2.5 | 0.8 | 1.5 | 11.5 | 14.3 | 0.009 | 7.98 |
| 7x0.5 | 0.6 | 1.2 | 8.5 | 10.6 | 0.013 | 39 |
| 7x0.75 | 0.6 | 1.2 | 8.9 | 11.1 | 0.011 | 26 |
| 7x1.0 | 0.6 | 1.2 | 9.3 | 11.7 | 0.01 | 19.5 |
| 7x1.5 | 0.7 | 1.2 | 10.6 | 13.2 | 0.01 | 13.3 |
| 7x2.5 | 0.8 | 1.5 | 13.1 | 16.2 | 0.009 | 7.98 |
