| MOQ: | 1000 M |
| 価格: | USD 0.4 To 10.5 per Meter |
| 標準パッケージ: | 木のスチール ドラム |
| 配達期間: | 10-15日 |
| 供給能力: | 1 日あたりの 8KM |

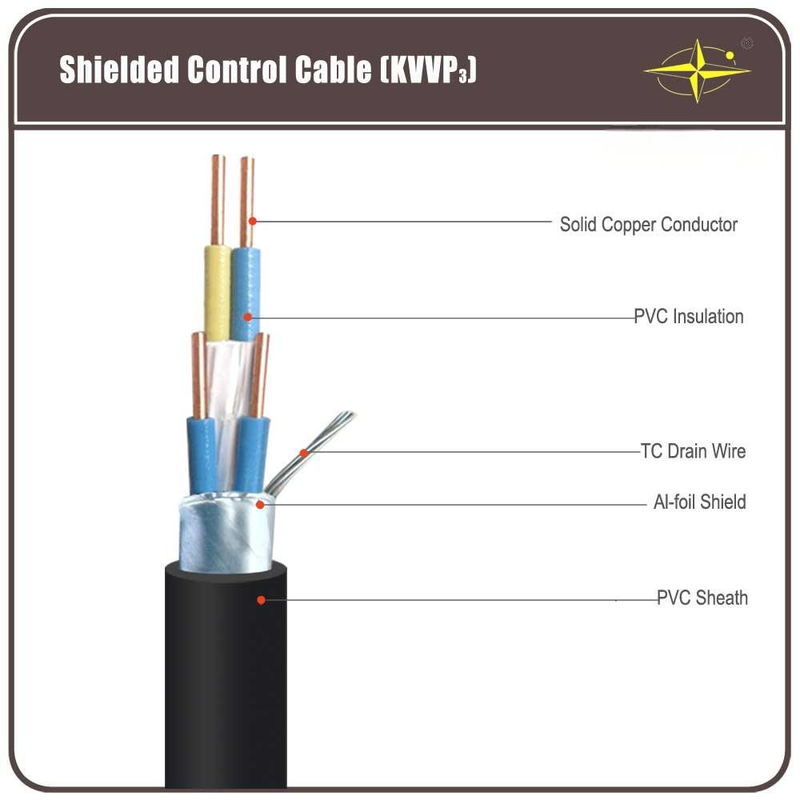

Al-Foil Screen PVC Sheathed Cable , Multi Core Electrical Cable With Tinned Drain Wire
Descriptions:
Conductor: Flexible Copper Conductor
Insualtion: PVC
Screen: Al-foil Screen with Tinned Drain Wire
Sheath: PVC
Operating characteristics
Rated voltages U0/U: 450/750V
Permissible Max. continuous operating temperature of conductor:
PVC insulated: 70°C
Upon short circuit (Max. Duration time 5s) the Max.
temperature of conductor not higher than:
PVC insulated: 160°C;
Ambient temperature of installation not less than 0°C.
Application:
For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.
Standard:
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Certificates
CE, RoHS, CCC, KEMA and more others at request
Why Choose Screen Control Cable
Reduce the impact of external current transmission, Keep safe and Correctly.
Why Choose SHAN CABLE
Here's Shanghai Shenghua Cable Is Committed to Offer for Every Customer:
High quality cable product with competitive price;
OEM cable product
Custom design per specific cable requirements and budgets;
Fast and on-time delivery of cable;
Flexible business deal;
Chief cable engineer with over 40 years' experience;
Harmonious colleague and customer relationship;
All cable products 100% Inspection;
Comprehensive after-sale service.
| Cross-Sectional Area mm2 |
Thickness of Insulation mm |
Thickness of mm |
Thickness of Sheath mm |
Overall Diameter mm |
Min resistance of insulation at 70℃ MΩ/km |
Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|
| min | max | |||||||
| 4x2.5 | 0.8 | 0.3 | 1.5 | 13.4 | 16.1 | 0.001 | 7.98 | 450 |
| 4x4 | 0.8 | 0.3 | 1.5 | 14.4 | 17.4 | 0.0085 | 4.95 | 505 |
| 4x6 | 0.8 | 0.3 | 1.5 | 15.6 | 18.8 | 0.007 | 3.3 | 619 |
| 4x10 | 1 | 0.3 | 1.7 | 19.4 | 23.5 | 0.0065 | 1.91 | 947 |
| 5x2.5 | 0.8 | 0.3 | 1.5 | 14.3 | 17.2 | 0.001 | 7.98 | 506 |
| 5x4 | 0.8 | 0.3 | 1.5 | 15.4 | 18.6 | 0.0085 | 4.95 | 586 |
| 5x6 | 0.8 | 0.3 | 1.7 | 16.7 | 20.2 | 0.007 | 3.3 | 737 |
| 5x10 | 1 | 0.3 | 1.7 | 21 | 25.4 | 0.0065 | 1.91 | 1125 |
| 7x0.75 | 0.6 | 0.3 | 1.5 | 11.8 | 14.2 | 0.012 | 26 | 317 |
| 7x1.0 | 0.6 | 0.3 | 1.5 | 12.2 | 14.7 | 0.011 | 19.5 | 425 |
| 7x2.5 | 0.7 | 0.3 | 1.5 | 13.5 | 16.3 | 0.01 | 7.98 | 554 |
| 7x4 | 0.8 | 0.3 | 1.5 | 15.2 | 18.4 | 0.0085 | 4.95 | 701 |
| 7x6 | 0.8 | 0.3 | 1.7 | 18 | 21.7 | 0.007 | 3.30 | 900 |
| 7x10 | 1 | 0.3 | 1.7 | 22.7 | 27.4 | 0.0065 | 1.91 | 1397 |
| 10x0.75 | 0.6 | 0.3 | 1.5 | 13.8 | 16.7 | 0.012 | 26 | 449 |
| 10x1 | 0.6 | 0.3 | 1.5 | 14.4 | 17.4 | 0.011 | 19.5 | 558 |
| 10x1.5 | 0.7 | 0.3 | 1.5 | 16.1 | 19.5 | 0.011 | 13.3 | 753 |
| 10x2.5 | 0.8 | 0.3 | 1.7 | 18.8 | 22.7 | 0.01 | 7.98 | 956 |
| 10x4 | 0.8 | 0.3 | 1.7 | 20.5 | 24.8 | 0.0085 | 4.95 | 1203 |
| 10x6 | 0.8 | 0.3 | 1.7 | 22.5 | 27.1 | 0.007 | 3.3 | 1534 |
|
|
