| MOQ: | 1000 M |
| 価格: | USD 0.4 To 10.5 per Meter |
| 標準パッケージ: | 木のスチール ドラム |
| 配達期間: | 10-15日 |
| 供給能力: | 1 日あたりの 8KM |

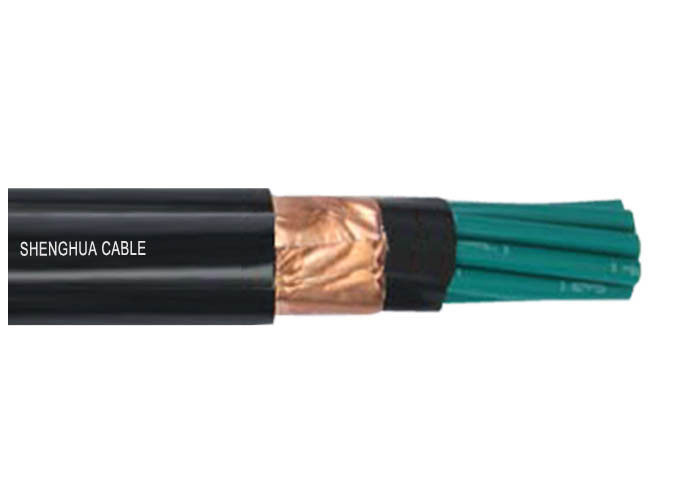

Anti Aging Control XLPE Insulated Cable 4 - 61 Cores Light Weight OEM
Descriptions:
Conductor: Solid or Stranded Copper Conductor
Insualtion: XLPE
Screen: Copper tape Screen
Sheath: PVC
Operating characteristics
Rated voltages U0/U: 450/750V
Permissible Max. continuous operating temperature of conductor:
XLPE insulated: 90°C
Upon short circuit (Max. Duration time 5s) the Max.
temperature of conductor not higher than:
XLPE insulated: 250°C;
Ambient temperature of installation not less than 0°C.
Standard:
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Certificates
CE, RoHS, CCC, KEMA and more others at request
Application:
For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.
Why Choose SHAN CABLE
Here's Shanghai Shenghua Cable Is Committed to Offer for Every Customer:
High quality cable product with competitive price;
OEM cable product
Custom design per specific cable requirements and budgets;
Fast and on-time delivery of cable;
Flexible business deal;
Chief cable engineer with over 40 years' experience;
Harmonious colleague and customer relationship;
All cable products 100% Inspection;
Comprehensive after-sale service.
| Cross-Sectional Area mm2 |
Thickness of Insulation mm |
Thickness of Copper Tape mm |
Thickness of Sheath mm |
Overall Diameter mm |
Min resistance of insulation at 70℃ MΩ/km |
Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|
| min | max | |||||||
| 4x0.75 | 0.6 | 0.05-0.1 | 1.2 | 8.1 | 9.7 | 0.012 | 24.5 | 144 |
| 4x1 | 0.6 | 0.05-0.1 | 1.2 | 8.4 | 10.2 | 0.011 | 18.1 | 153 |
| 4x1.5 | 0.7 | 0.05-0.1 | 1.2 | 9.5 | 11.4 | 0.011 | 12.1 | 190 |
| 4x2.5 | 0.8 | 0.05-0.1 | 1.5 | 10.9 | 13.1 | 0.01 | 7.41 | 276 |
| 4x4 | 0.8 | 0.05-0.1 | 1.5 | 12.5 | 15.1 | 0.0085 | 4.61 | 367 |
| 4x6 | 0.8 | 0.05-0.1 | 1.5 | 13.6 | 16.5 | 0.007 | 3.08 | 467 |
| 4x10 | 1 | 0.05-0.1 | 1.7 | 17.1 | 20.7 | 0.0065 | 1.83 | 728 |
| 7x0.75 | 0.6 | 0.05-0.1 | 1.2 | 9.3 | 11.2 | 0.012 | 24.5 | 178 |
| 7x1.0 | 0.6 | 0.05-0.1 | 1.2 | 9.7 | 11.7 | 0.011 | 18.1 | 209 |
| 7x1.5 | 0.7 | 0.05-0.1 | 1.5 | 11 | 13.3 | 0.011 | 12.1 | 239 |
| 7x2.5 | 0.8 | 0.05-0.1 | 1.5 | 13.3 | 16.1 | 0.01 | 7.41 | 398 |
| 7x4 | 0.8 | 0.05-0.1 | 1.5 | 14.6 | 17.6 | 0.0085 | 4.61 | 528 |
| 7x6 | 0.8 | 0.05-0.1 | 1.5 | 16 | 19.4 | 0.007 | 3.08 | 717 |
| 7x10 | 1 | 0.05-0.1 | 1.7 | 20.7 | 25.1 | 0.0065 | 1.83 | 1145 |
| 10x0.75 | 0.6 | 0.05-0.1 | 1.5 | 11.3 | 13.7 | 0.012 | 24.5 | 214 |
| 10x1 | 0.6 | 0.05-0.1 | 1.5 | 12.5 | 15.1 | 0.011 | 18.1 | 300 |
| 10x1.5 | 0.7 | 0.05-0.1 | 1.5 | 14.2 | 17.2 | 0.011 | 12.1 | 367 |
| 10x2.5 | 0.8 | 0.05-0.1 | 1.7 | 16.5 | 20 | 0.01 | 7.41 | 572 |
| 10x4 | 0.8 | 0.05-0.1 | 1.7 | 18.6 | 22.5 | 0.0085 | 4.61 | 787 |
| 10x6 | 0.8 | 0.05-0.1 | 1.7 | 20.5 | 24.8 | 0.007 | 3.08 | 992 |
|
|
