| MOQ: | 500meter |
| 価格: | US$0.5~55 per meter |
| 標準パッケージ: | 木のドラム |
| 配達期間: | 週 |
| 決済方法: | L / C、T / T |
| 供給能力: | 1 週あたりの 5000 キロメートル |

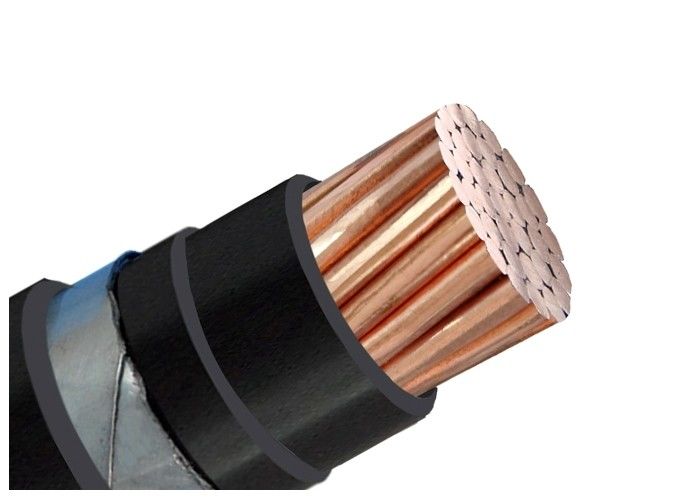

Construction
Conductor : Annealed Copper Conductor as per IEC 60228
≤6mm2 solid (class 1) or stranded (class 2)
＞6mm2 stranded (class 2)
Flexible conductor(class 5) optional.
Insulation : XLPE(cross-linked polyethylene) rated at 75℃
Metallic Screen optional : Copper tape or copper wires braiding optional
Armored optional: :Aluminum wire or stainless steel tape for single core cable, Steel wire or steel tape for multi core cable
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black or red or customization
Applications
This product is applicable to the fixed routing in the power distribution network or the industrial equipment with power frequency rated voltage of 1kV and below.
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces.
Application Standard: IEC/BS/UL/GB Standards
Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage:0.6/1kV Low Voltage
Maximum Conductor Temperature: under normal (75 ℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core without armor
15 x cable O.D for multi core without armor
15 x cable O.D for single core with armor
12 x cable O.D for multi core with armor
Certificates
ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
Technical parameter
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Inner Covering Thickness | Steel Tape Thickness | Sheath Thickness | Approx. O.D. | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | ||
| mm2 | pc/mm | mm | mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) | |
| 1 × 25 | 7/2.14 | 0.9 | 1.0 | 2 × 0.2 | 1.8 | 14.0 | 442 | 0.727 | 3.5 | 120 | 155 | |
| 1 × 35 | 7/2.52 | 0.9 | 1.0 | 2 × 0.2 | 1.8 | 15.0 | 547 | 0.524 | 3.5 | 150 | 185 | |
| 1 × 50 | 10/2.52 | 1.0 | 1.0 | 2 × 0.2 | 1.8 | 17.0 | 688 | 0.387 | 3.5 | 180 | 220 | |
| 1 × 70 | 14/2.52 | 1.1 | 1.0 | 2 × 0.2 | 1.8 | 18.0 | 895 | 0.268 | 3.5 | 230 | 270 | |
| 1 × 95 | 19/2.52 | 1.1 | 1.0 | 2 × 0.2 | 1.8 | 20.0 | 1125 | 0.193 | 3.5 | 285 | 320 | |
| 1 × 120 | 24/2.52 | 1.2 | 1.0 | 2 × 0.2 | 1.8 | 22.0 | 1358 | 0.153 | 3.5 | 335 | 365 | |
| 1 × 150 | 30/2.52 | 1.4 | 1.0 | 2 × 0.2 | 1.8 | 23.0 | 1649 | 0.124 | 3.5 | 385 | 410 | |
| 1 × 185 | 37/2.52 | 1.6 | 1.0 | 2 × 0.5 | 1.8 | 25.0 | 1984 | 0.0991 | 3.5 | 450 | 465 | |
| 1 × 240 | 48/2.52 | 1.7 | 1.0 | 2 × 0.5 | 1.8 | 28.0 | 2489 | 0.0754 | 3.5 | 535 | 540 | |
| 1 × 300 | 61/2.52 | 1.8 | 1.0 | 2 × 0.5 | 1.9 | 30.0 | 3036 | 0.0601 | 3.5 | 620 | 610 | |
| 1 × 400 | 61/2.97 | 2.0 | 1.2 | 2 × 0.2 | 2.1 | 35.0 | 4230 | 0.0470 | 3.5 | 720 | 695 | |
| 1 × 500 | 61/3.23 | 2.2 | 1.2 | 2 × 0.2 | 2.2 | 39.0 | 5194 | 0.0366 | 3.5 | 835 | 780 | |
| 1 × 630 | 61/3.50 | 2.4 | 1.2 | 2 × 0.2 | 2.4 | 45.0 | 6504 | 0.0283 | 3.5 | 960 | 880 | |
PACKING AND SHIPPING
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
