| MOQ: | 500 メートル |
| 価格: | US$0.45~122 / Meter |
| 標準パッケージ: | ドラム |
| 配達期間: | 10 営業日 |
| 決済方法: | トン/ Tは、リットル/℃ |
| 供給能力: | 月 10,000 KMs |

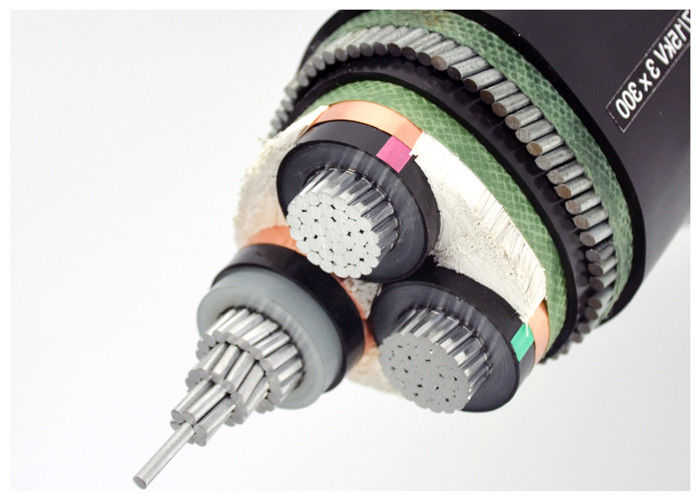

Structure
Stranded bare aluminum conductor
Inner layer of semi-conducting material
Core insulation of cross-linked polyethylene
Outer layer of semi-conducting material
Screen of copper tape
Fillers strip, Yarn, or Paper
Non woven wrapping tape
Extruded PVC inner covering
Galvanized Steel Tape Armour
Overall Sheath polyvinylchloride (PVC) or FR-PVC, PE, LSOH
Application
Apply to shafts,water and soil,able to bear the larger positive pressure.
Standard
International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV32, ZR-YJV72 only)
China: GB/T 12706, (GB/T 18380-3 for ZR-YJV32, ZR-YJV72 only)
Other standards such as BS,DIN and ICEA upon request
Code name
YJ: XLPE insulation
V: PVC sheath
32:Steel wire armoring—3 cores
72: Aluminum wire armoring—1 core
ZR: Flame resistant
| MV(6 to 35kv) Power Cable | |||
| Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV | No.of Core | Conductor cross-section area(mm2) | |
| xlpe insulation | 1 core 3 core | 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm | |
| Cu core | Al Core | ||
| YJV, N2XSY;PVC sheathed power cable | YJLV, NA2XSY; PVC sheathed power cable | ||
| YJV22;steel tape armoured,PVC sheathed power cable | YJLV22;steel tape armoured,PVC sheathed power cable | ||
| YJV32,YJV42;steel wire armoured ,PVC sheathed power cable | YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable | ||
Technical data
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core
| Test voltage | 6 / 10 kV | [kV] | 21 / 5 min. |
| 12 / 20 kV | [kV] | 42 / 5 min. | |
| 18 / 30 kV | [kV] | 63 / 5 min. | |
| Temperature range | in motion | -5°C till +70°C | |
| fixed | -20°C till +70°C | ||
| Operating temperature | short circuit | °C | 250 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | min. | x diameter | 15 |
| Flammability | standard | EN 60332-1-2 |
Certificate
ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
