| MOQ: | 1000メートル |
| 価格: | US$0.3 -109 per Meter |
| 標準パッケージ: | 木のドラム |
| 配達期間: | 10日 |
| 決済方法: | トン/ Tは、リットル/℃ |
| 供給能力: | 1 ヶ月あたりの 10,000 キロメートル |
Applications
Used for power transmission and distribution line with voltage rated at 35kV and below.
1,This kind of cable is fit for AC 50HZ, rated voltage 6/6kv(not higher than 7.2kv) electric distribution network and industrial devices fixed laying.
2,It is used in underground power grid of city building, and industrial mining enterprises’ power distribution.
3,It is conform to ZL30TM004097.1-2012 [YJY 0.6/35kV]
4,GB/T 12706-2008 rated voltage 1kV(Um=1.2kV)to 35kV(Um=40.5kV)

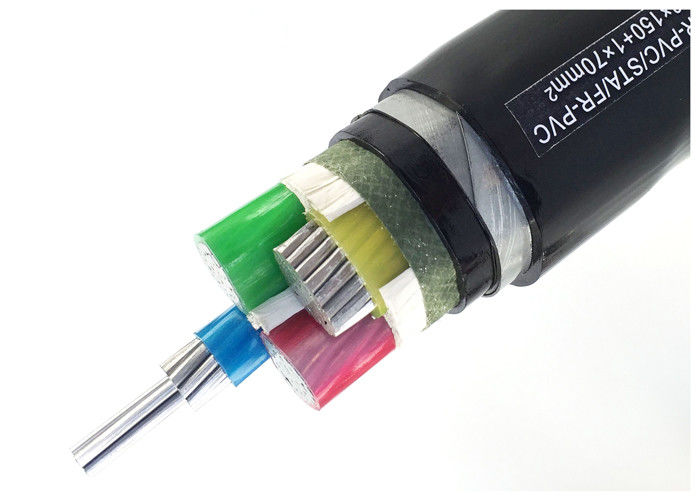

Construction
| Conductor | Compact Stranded Aluminum Conductor, Class 2 as per IEC 60228 |
| Circular solid AL Conductor, Class 1 as per IEC 60228 | |
| Insulation | XLPE |
| Separate Screen | Copper Tape, Al-foil tape (MV must, LV optional) |
| Filler | Fillers strip, Yarn, or Paper |
| Wrapping Tape | Non woven |
| Inner Covering | Extruded PVC |
| Armour | Steel Tape armoring |
| Overall Sheath |
PVC |
Standards
IEC60502, BS6346, VDE, AS/NZS, UL,etc or as customer's request.
The Rated Voltage(kV):
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
Number of cores:
1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.
Technique property:
1,The long time working temperature is at 75℃, suffer short circuit (within 5 seconds), the temperature of core can not higher than 160℃
2,The ambient temperature should not lower than -10℃
3,The laying temperature should not lower than 0℃
4,Single core’s bend radius with no armor should not exceed 20D,single core’s bend radius with armor should not exceed than 15D,three cores’ bend radius with armor should not exceed 12D
Note:
1. Only a part of cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multi mode.
3. Specially designed Cables structure is available on request.
Services
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
FAQ
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
|
|
