| MOQ: | 500メートル |
| 価格: | 0.1-99 USD/M |
| 標準パッケージ: | 木の鉄のドラム |
| 配達期間: | 10日 |
| 決済方法: | L/C、D ・ D ・ P T/T |
| 供給能力: | 500 KM/Month |
0.6 / 1KV Four Cores LSOH Fire Resistant Cable 240 SQ MM IEC Copper XLPE Low Smoke Zero Halogen Cable
Specifications
| Conductor | : | Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper |
|---|---|---|
| Fire Barrier | : | Mica Tape |
| Insulation | : | XLPE (For FR-200) or LSOH (For FR-300) |
| Sheath | : | LSOH |
Note:
1. The models also contain fire-resistant type of low voltage power cable.
2. When signing the contract, the fire resistant type must be specified. For example, if type A is preferred, please add "A" to the end of "ZR", forming "ZRA", and A is usually used in places where the fire resistant property is highly required. B and C follow the same rule. In addition, if there is no letter after "ZR", the cable will be produced following "ZRC".
Quality Assurance:
All cables are produced by strict inspection and testing:
1). Raw Material: Copper, Aluminium, PVC, PE and XLPE granules and all other materials for producing cables are all inspected carefully automatically. Only the qualified will be applied into cable production, the disqualified will be rejected.
2). Production Procedure: Cables are produced by advanced cable production machines.
3). Testing: Cables will not be packed until they are tested totally qualified. Cable Testing Machines includes Online Core Shift Detection Device, Tension Tester, Aging Test Chamber, Experimental Apparatus of Combustion, Insulation Resistance Tester and etc…

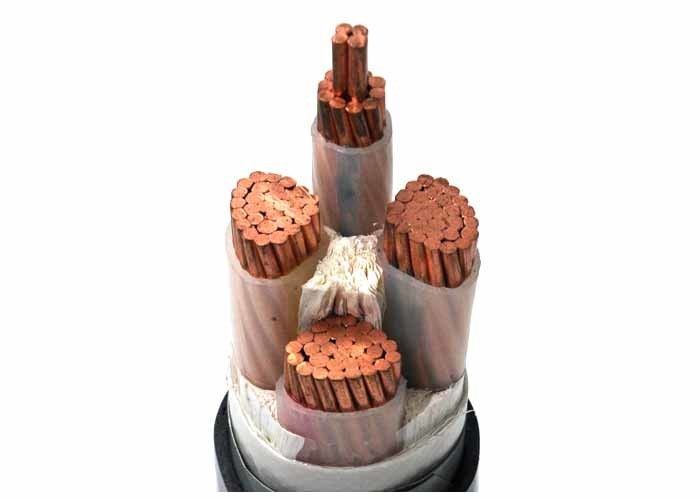

Construction
1 Conductor: Compact stranded copper conductor, Cl.2 as per lEC60228
(11 MicaTape
③lnsulation:XLPE(cross-linked polyethylene) rated at 90°C
(1111 Filler
(5: Wrapping Tape: LSOH BendingTape
⑥Sheath:LSOH,black or other colors,as per lEC60332,60502-1
|
|
