| MOQ: | 500 の m |
| 価格: | USD 10-450 Per Meter |
| 標準パッケージ: | 鉄木のドラムか全木のドラム |
| 配達期間: | 10日 |
| 決済方法: | L/C、T/T、ウェスタン・ユニオン、MoneyGram |
| 供給能力: | 1 ヶ月あたりの 100KM |

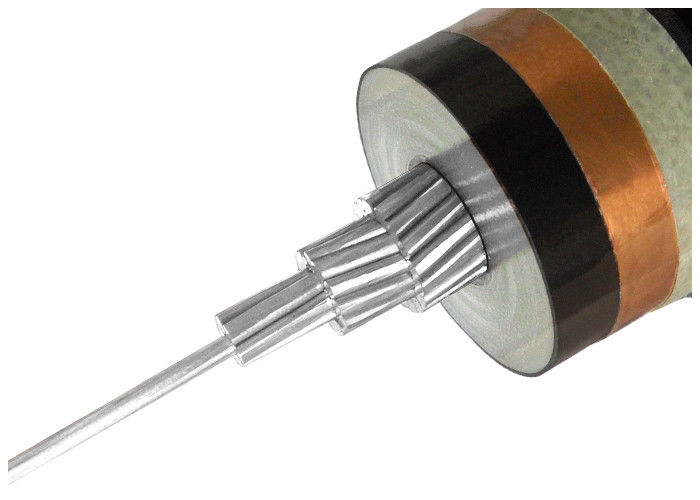

Insulated High Voltage XLPE Underground Cable For Outside Power Distribution
Construction
Conductor: Annealed Aluminum Conductor as per IEC 60228
≤6mm2 solid (class 1) or stranded (class 2)
＞6mm2 stranded (class 2)
Flexible conductor (class 5) optional.
Insulation: XLPE (Cross-Linked Polyethylene) rated at 90℃
Metallic Screen optional: Copper tape or copper wires braiding optional
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black or red or customization
Applications
PVC Insulated Cable is used as power distribution and transmission line at rated voltage 0.6/1KV.
Used outside as energy utility and lighting cables, in cable ducts, underground, under normal and salty water if specially made.
Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS, DIN and ICEA upon request
Installation
1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.
3. After installation, the cable should with stand voltage test for 15min. 3.5kv D.C.
Technical Data:
| Nom. Cross-section of conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. | Approx. Weight | Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | mm | mm | mm | kg/km | Ω /km | kV/5min | In air (A) | In soil (A) |
| 1×70 | 10.5 | 2.4 | 41 | 1604 | 0.443 | 91 | 265 | 270 |
| 1×95 | 10.5 | 2.4 | 43 | 1767 | 0.320 | 91 | 320 | 325 |
| 1×120 | 10.5 | 2.4 | 44 | 1923 | 0.253 | 91 | 370 | 370 |
| 1×150 | 10.5 | 2.5 | 46 | 2103 | 0.206 | 91 | 420 | 420 |
| 1×185 | 10.5 | 2.5 | 48 | 2282 | 0.164 | 91 | 480 | 480 |
| 1×240 | 10.5 | 2.6 | 50 | 2584 | 0.125 | 91 | 565 | 560 |
| 1×300 | 10.5 | 2.7 | 53 | 2891 | 0.100 | 91 | 650 | 640 |
| 1×400 | 10.5 | 2.8 | 56 | 3325 | 0.0778 | 91 | 780 | 760 |
| 1×500 | 10.5 | 2.9 | 59 | 4076 | 0.0605 | 91 | 915 | 875 |
| 1×630 | 10.5 | 3.0 | 63 | 4305 | 0.0469 | 91 | 1030 | 990 |
| 1×800 | 10.5 | 3.1 | 68 | 5054 | 0.0367 | 91 | 1180 | 1140 |
| 1×1000 | 10.5 | 3.3 | 72 | 5878 | 0.0291 | 91 | 1350 | 1280 |
| 1×1200 | 10.5 | 3.4 | 76 | 6657 | 0.0247 | 91 | 1500 | 1390 |
| 3×50 | 10.5 | 3.4 | 81 | 5778 | 0.641 | 91 | 152 | 144 |
| 3×70 | 10.5 | 3.5 | 84 | 6232 | 0.443 | 91 | 189 | 177 |
| 3×95 | 10.5 | 3.6 | 88 | 6824 | 0.320 | 91 | 225 | 200 |
| 3×120 | 10.5 | 3.8 | 93 | 7406 | 0.253 | 91 | 258 | 237 |
| 3×150 | 10.5 | 3.9 | 96 | 8165 | 0.206 | 91 | 290 | 265 |
| 3×185 | 10.5 | 4.0 | 100 | 8904 | 0.164 | 91 | 310 | 295 |
| 3×240 | 10.5 | 4.1 | 105 | 9863 | 0.125 | 91 | 365 | 345 |
| 3×300 | 10.5 | 4.4 | 108 | 10270 | 0.100 | 91 | 425 | 390 |
| 3×400 | 10.5 | 4.5 | 116 | 11786 | 0.0778 | 91 | 490 | 450 |
Aftersales Service
We, Shanghai Shenghua Cable Group are specialized in R&D and manufacturing cables and wires. We have passed ISO9001:2008 International Quality System Certification(ZDHY), which covers the whole process of the management of the enterprise. A comprehensive quality control system has been put into place to ensure products meet international standards. Our tenet is: Set up top-ranking enterprise, high-class product, excellent service and well-known brand. "Abide by quality assurance, dedicated to provide users with reliable products always" is our commitment to quality. The products of our company are insured by PICC (the People's Insurance Company of China). Moreover, we offer specific guarantees as below:
1．We guarantee that we will comply with the requirements of warranty period specified in the contract.
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion
thereof as the case may be, have been delivered to and accepted at the final destination
indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or
place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
Shanghai Shenghua Cable (Group) Co., Ltd
|
|
