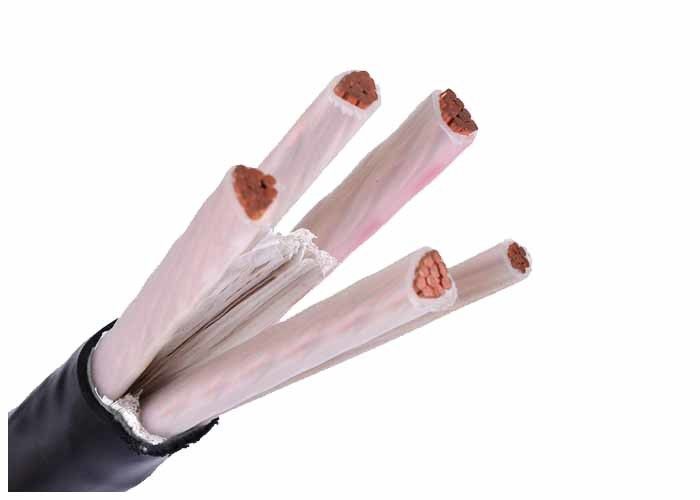

ISO Certificate 1kV Copper Conductor XLPE Insulation Cable Five Cores Power Cable

ISO Certificate 1kV Copper Conductor XLPE Insulated Power Cable Five Cores Power Cable

Applications:

Used outside as energy utility and lighting cables, in cable ducts, under ground, under normal

and salty water if specially made.

Construction:

Conductor : Annealed Copper Conductor as per IEC 60228

≤6mm2 solid (class 1) or stranded (class 2)

＞6mm2 stranded (class 2)

Flexible conductor(class 5) optional.

Insulation : XLPE rated at 90℃

Metallic Screen optional : Copper tape or copper wires braiding optional

Armored optional: : Aluminum wire or stainless steel tape for single core cable, Steel wire or steel

tape for multi core cable

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black or red or customization

Standards:

International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS,DIN and ICEA upon request

Technical data:

Rated voltage: 0.6/1kV Low Voltage

Maximum Conductor Temperature: under normal (90 ℃), emergency (160℃) or short circuit no

more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core without armor

15 x cable O.D for multi core without armor

15 x cable O.D for single core with armor

12 x cable O.D for multi core with armor

Certificates:

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request

Ordering Advice

Rated Voltage

Application Standard:IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armour, the armour type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement

Packing and shipping

We are capable of meeting the most strict delivery schedules according to per purchase order.

Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute

to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP

self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture.

The required marking shall be printed with a weather-proof material on the outsides of drum

according to customer's requirement.
