| MOQ: | 1000 メートル |
| 価格: | US$1.08~69.2 per meter |
| 標準パッケージ: | 木のドラム |
| 配達期間: | 15日 |
| 決済方法: | L / C、T / T |
| 供給能力: | 1 ヶ月あたりの 20000Kilometer |

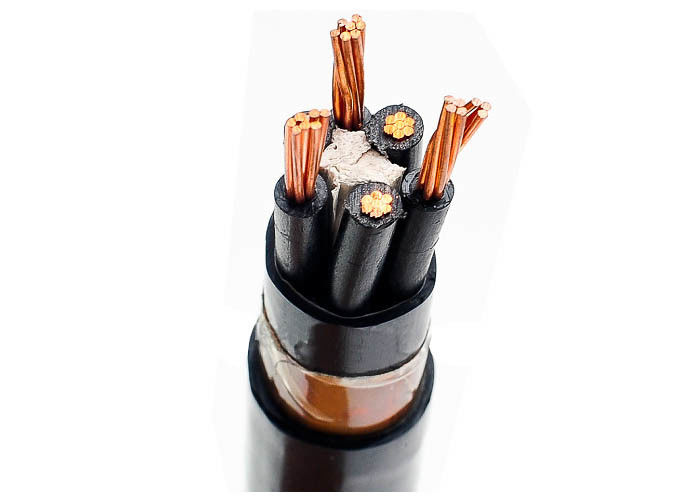

0.6/1kV Five Copper Core XLPE Insulated PVC Sheathed Copper Tape Screen Power Cable
| Type | Desciption | Rated Voltage | NO. of Cores | Nomibal section(mm2) | Applications |
| YJV YJLV | Cu or Al conductor,XLPE insulated.PVC sheathed electric cable | 0.6/1KV | 1,2,3,4 | 1.5 to 400 | For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces. |
| 3+1 | 3×4+1×2.5 to 3×400+1×185 | ||||
| 6/6kV | 1,3 | 25 to 500 | |||
| 8.7/10kV 8.7/15kV 12/20kV | 1 | 25 to 500 | |||
| 3 | 25 to 300 | ||||
| 21/35kv | 1 | 50 to 500 | |||
| YJV22 YJLV22 | Cu or Al conductor,XLPE insulated steel tape armoured PVC sheathed electric cable | 0.6/1KV | 3 | 1.5 to 400 | Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces. |
| 4 | 4 to 240 | ||||
| 6/6kV 8.7/10kV 8.7/15kV 12/20kV | 3 | 25 to 300 | |||
| 21/35kv | 3 | 50 to 240 |
| pvc insulation | |
| Cu Core | Al Core |
| VV(VY);PVC(PE)sheathed power cable | VLV(VLY);PVC(PE)sheathed power cable |
| VV22(VV23);steel tape armoured,PVC(PE)sheathed power cable | VLV22(VLV23);steel tape armoured,PVC(PE)sheathed power cable |
| VV32(VV33),VV42(VV43);steel wire armoured ,PVC(PE)sheathed power cable | VLV32(VLV33),VLV42(VLV43);steel wire armoured ,PVC(PE)sheathed power cable |
Construction:
Conductor : Annealed Copper Conductor as per IEC 60228
≤6mm2 solid (class 1) or stranded (class 2)
＞6mm2 stranded (class 2)
Flexible conductor(class 5) optional.
Insulation : XLPE rated at 90℃
Metallic Screen optional : Copper tape or copper wires braiding optional
Armored optional: : Aluminum wire or stainless steel tape for single core cable, Steel wire or steel
tape for multi core cable
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black or red or customization
Applications:
Used outside as energy utility and lighting cables, in cable ducts, under ground, under normal
and salty water if specially made.
Technical data:
Rated voltage: 0.6/1kV Low Voltage
Maximum Conductor Temperature: under normal (90 ℃), emergency (160℃) or short circuit no
more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core without armor
15 x cable O.D for multi core without armor
15 x cable O.D for single core with armor
12 x cable O.D for multi core with armor
Certificates
ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
Ordering Advice
Rated Voltage
Application Standard:IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armour, the armour type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order.
Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute
to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP
self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture.
The required marking shall be printed with a weather-proof material on the outsides of drum
according to customer's requirement.
After-service commitment
Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise,
Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy
of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client
could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we
observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable
relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and
installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company
of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question
timely.We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us
more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.
|
|
