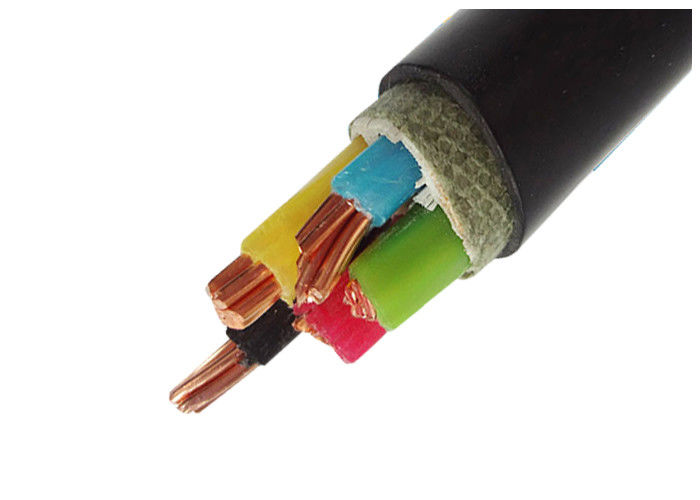

3 Core Copper Low Voltage XLPE Insulated Power Cable For Industrial Wiring

3 Core Copper Low Voltage XLPE Insulated Power Cable For Industrial Wiring

MOQ: 500
価格: USD 1-100 Per Meter
標準パッケージ: 鉄木のドラムか木のドラム
配達期間: 15日
決済方法: L/C、T/T、ウェスタン・ユニオン、MoneyGram
供給能力: 1 ヶ月あたりの 1000KM
詳細情報
起源の場所
中国
ブランド名
QINGDAO YICABLE CABLE
証明
IEC/CE/KEMA
定格電圧:
0.6/1kV
導体の種類:
座礁させたコンダクター(クラス 2)
中心の印:
数かカラー ストリップ
曲げ半径:
6D回状のコンダクター
ドラム長さ:
要求によって 500m または
最高。実用温度:
90 ℃
ハイライト:

xlpe electrical cable

,

cross linked polyethylene cable

製品説明

3 Core Copper Low Voltage Power Cables For Industrial Wiring and Mains Distribution

Applications: Industrial wiring and mains distribution. Can be laid direct in the ground, or in ducts, clipped to surface, on trays or in free air.



CONSTRUCTION



Conductor : Single, Two, Three, Four and Five core cables. Stranded plain copper conductors Insulation : XLPE insulated, cores laid up, extruded PVC bedding, galvanised steel wire armoured (Aluminium wires for single cores) and PVC sheathed.



STANDARD COLOURS



Cores : Single-core- Red or Black 2-core- Red and Black 3-core- Red, Yellow and Blue 4-core- Red, Yellow, Blue and Black 5-core- Red, Yellow, Blue, Black and Green/Yellow As per New Harmonised Code Single-core- Brown or Blue 2-core- Brown and Blue 3-core- Brown, Black and Grey 4-core- Brown, Black Grey and Blue 5-core- Brown, Black, Grey, Green/Yellow and Blue



PROPERTY:



1.The highest allowed operating temperature of conductor for long-term working is 90 degrees. 2.In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees. 3.The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated. 4.Excellent electrical performance, resistance to chemical corrosion. 5.They can stand advisable traction when laid. They can stand traction from Outside. Left low smoke halogen-free after burned. Retard the burning of the cabl




Ordering Advice

Rated Voltage
Application Standard: IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armor, the armor type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement


3 Core Copper Low Voltage XLPE Insulated Power Cable For Industrial Wiring 0




製品
商品の詳細
3 Core Copper Low Voltage XLPE Insulated Power Cable For Industrial Wiring
MOQ: 500
価格: USD 1-100 Per Meter
標準パッケージ: 鉄木のドラムか木のドラム
配達期間: 15日
決済方法: L/C、T/T、ウェスタン・ユニオン、MoneyGram
供給能力: 1 ヶ月あたりの 1000KM
詳細情報
起源の場所
中国
ブランド名
QINGDAO YICABLE CABLE
証明
IEC/CE/KEMA
定格電圧:
0.6/1kV
導体の種類:
座礁させたコンダクター(クラス 2)
中心の印:
数かカラー ストリップ
曲げ半径:
6D回状のコンダクター
ドラム長さ:
要求によって 500m または
最高。実用温度:
90 ℃
最小注文数量:
500
価格:
USD 1-100 Per Meter
パッケージの詳細:
鉄木のドラムか木のドラム
受渡し時間:
15日
支払条件:
L/C、T/T、ウェスタン・ユニオン、MoneyGram
供給の能力:
1 ヶ月あたりの 1000KM
ハイライト

xlpe electrical cable

,

cross linked polyethylene cable

製品説明

3 Core Copper Low Voltage Power Cables For Industrial Wiring and Mains Distribution

Applications: Industrial wiring and mains distribution. Can be laid direct in the ground, or in ducts, clipped to surface, on trays or in free air.



CONSTRUCTION



Conductor : Single, Two, Three, Four and Five core cables. Stranded plain copper conductors Insulation : XLPE insulated, cores laid up, extruded PVC bedding, galvanised steel wire armoured (Aluminium wires for single cores) and PVC sheathed.



STANDARD COLOURS



Cores : Single-core- Red or Black 2-core- Red and Black 3-core- Red, Yellow and Blue 4-core- Red, Yellow, Blue and Black 5-core- Red, Yellow, Blue, Black and Green/Yellow As per New Harmonised Code Single-core- Brown or Blue 2-core- Brown and Blue 3-core- Brown, Black and Grey 4-core- Brown, Black Grey and Blue 5-core- Brown, Black, Grey, Green/Yellow and Blue



PROPERTY:



1.The highest allowed operating temperature of conductor for long-term working is 90 degrees. 2.In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees. 3.The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated. 4.Excellent electrical performance, resistance to chemical corrosion. 5.They can stand advisable traction when laid. They can stand traction from Outside. Left low smoke halogen-free after burned. Retard the burning of the cabl




Ordering Advice

Rated Voltage
Application Standard: IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armor, the armor type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement


3 Core Copper Low Voltage XLPE Insulated Power Cable For Industrial Wiring 0
