XLPE Insulated Cable

XLPE Insulated Cable

MOQ: 500メートル
価格: USD 0.68-1.89/M
標準パッケージ: 木の鉄のドラム
配達期間: 7 日間
決済方法: L / C、T / T
供給能力: 96827KM/Week
詳細情報
起源の場所
中国
ブランド名
QINGDAO YICABLE CABLE
証明
KEMA/CE/ISO/TUV/GOST
品質保証:
2年
応用分野:
送電および照明装置
外のSeath:
塩ビ
サンプル:
利用可能
電圧をテストして下さい:
600/1000V
コンダクター:
100% の銅
ハイライト:

xlpe electrical cable

,

xlpe power cable

製品説明

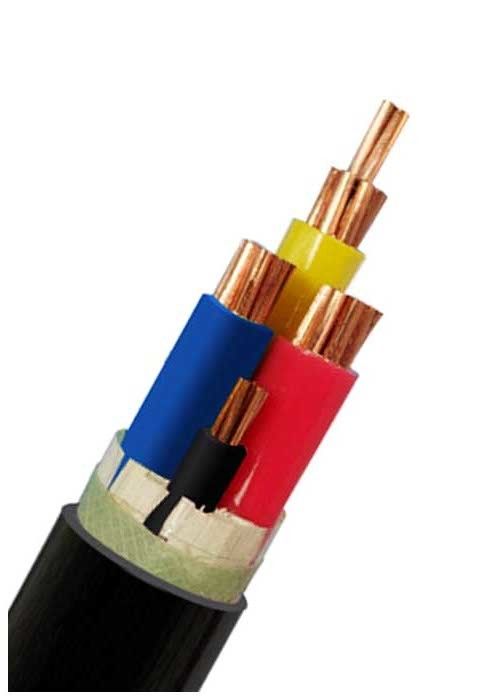

Three Phase core copper conductor unarmored 600/1000V 3x10mm2 XLPE Insulated Power Cable



Description:



0.6/1kv XLPE Insulated Electric Power cable

CU/XLPE/PVC, IEC 60502

IEC 60502, IEC 60228, GB/T 12706.1-2008.

CE, CCC, KEMA. ISO. VDE



Constructions



Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Sheath : PVC type ST2 to IEC 60502, black



Applications



For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.



Standards



International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request



Technical data



Rated voltage: 0.6/1kV

Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area below 300mm2, 140℃ when section-area above 300mm2)

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%



Certificates



CE, RoHS, CCC, KEMA and more others at request



Packing:

XLPE Insulated Cable 0





Technical Specifications:



Nom. Cross-section of conductor Strands No./Dia. of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx

.Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm Lower Limit (mm) kg/km Ω /km kV/5min In air (A) Direct In soil(A)
3 × 1.5 1/1.38 0.7 1.4 10.0 145 12.1 3.5 20 27
3 × 2.5 1/1.78 0.7 1.8 11.0 185 7.41 3.5 26 35
3 × 4 1/2.25 0.7 1.8 12.0 250 4.61 3.5 34 45
3 × 6 1/2.76 0.7 1.8 13.0 320 3.08 3.5 43 57
3 × 10 7/1.38 0.7 1.8 16.0 450 1.83 3.5 60 77
3 × 16 7/1.78 0.7 1.8 18.0 640 1.15 3.5 83 105
3 × 25 7/2.14 0.9 1.8 21.0 940 0.727 3.5 105 125
3 × 35 7/2.52 0.9 1.8 23.0 1260 0.524 3.5 125 155
3 × 50 10/2.52 1.0 1.8 23.0 1670 0.387 3.5 160 185
3 × 70 14/2.52 1.1 1.8 26.0 2280 0.268 3.5 200 225
3 × 95 19/2.52 1.1 1.9 30.0 3020 0.193 3.5 245 270
3 × 120 24/2.52 1.2 2.0 32.0 3790 0.153 3.5 285 310
3 × 150 30/2.52 1.4 2.2 37.0 4750 0.124 3.5 325 345
3 × 185 37/2.52 1.6 2.3 41.0 5654 0.0991 3.5 375 390
3 × 240 48/2.52 1.7 2.4 46.0 7243 0.0754 3.5 440 450
3 × 300 61/2.52 1.8 2.6 51.0 9465 0.0601 3.5 505 515
3 × 400 61/2.97 2.0 3.0 64.0 12066 0.0470 3.5 570 575
